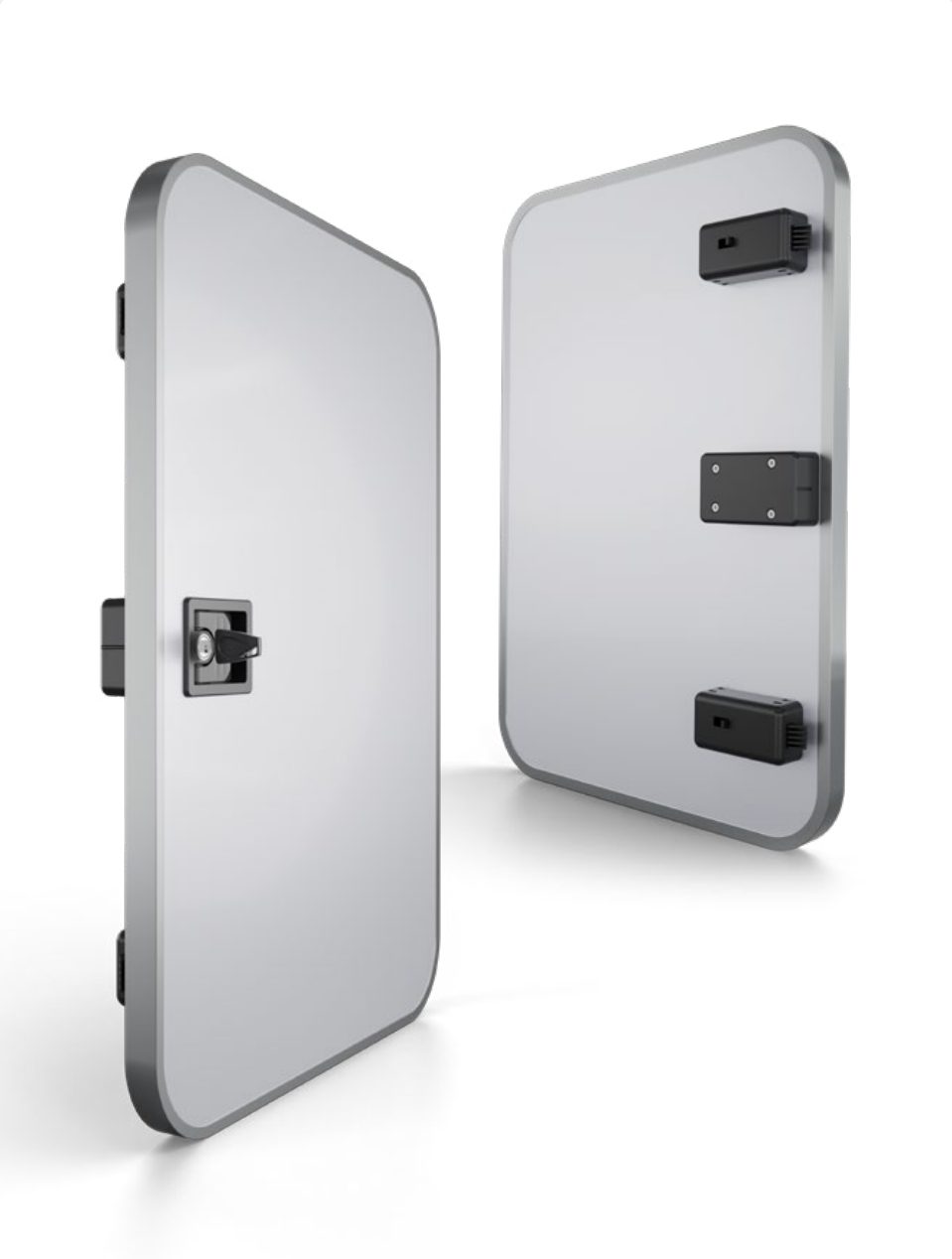

One-hand 2-point system
Large hatches need two locking points for a defined closing force distribution. The CubeLine Neo one-hand 2-point system achieves this with one central exterior lock and synchronised actuation via a variable cut-to-length wire rope – optionally with central locking, locking wedge guide and internal emergency release.
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Advantages over two separate 1-point systems:

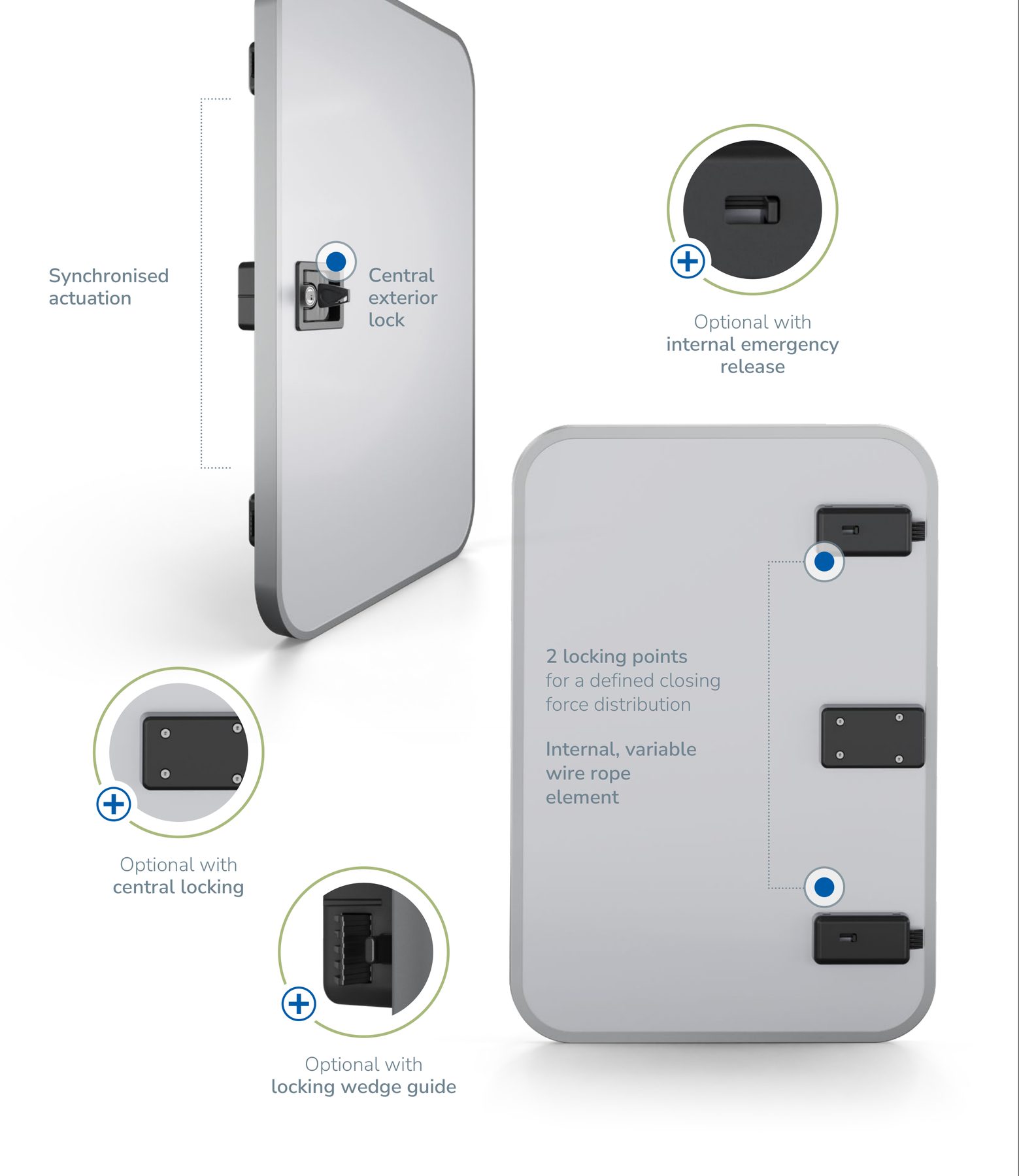

The central exterior lock drives both locking points through an internal wire rope element. Central locking, a locking wedge guide and an internal emergency release can be added as options.

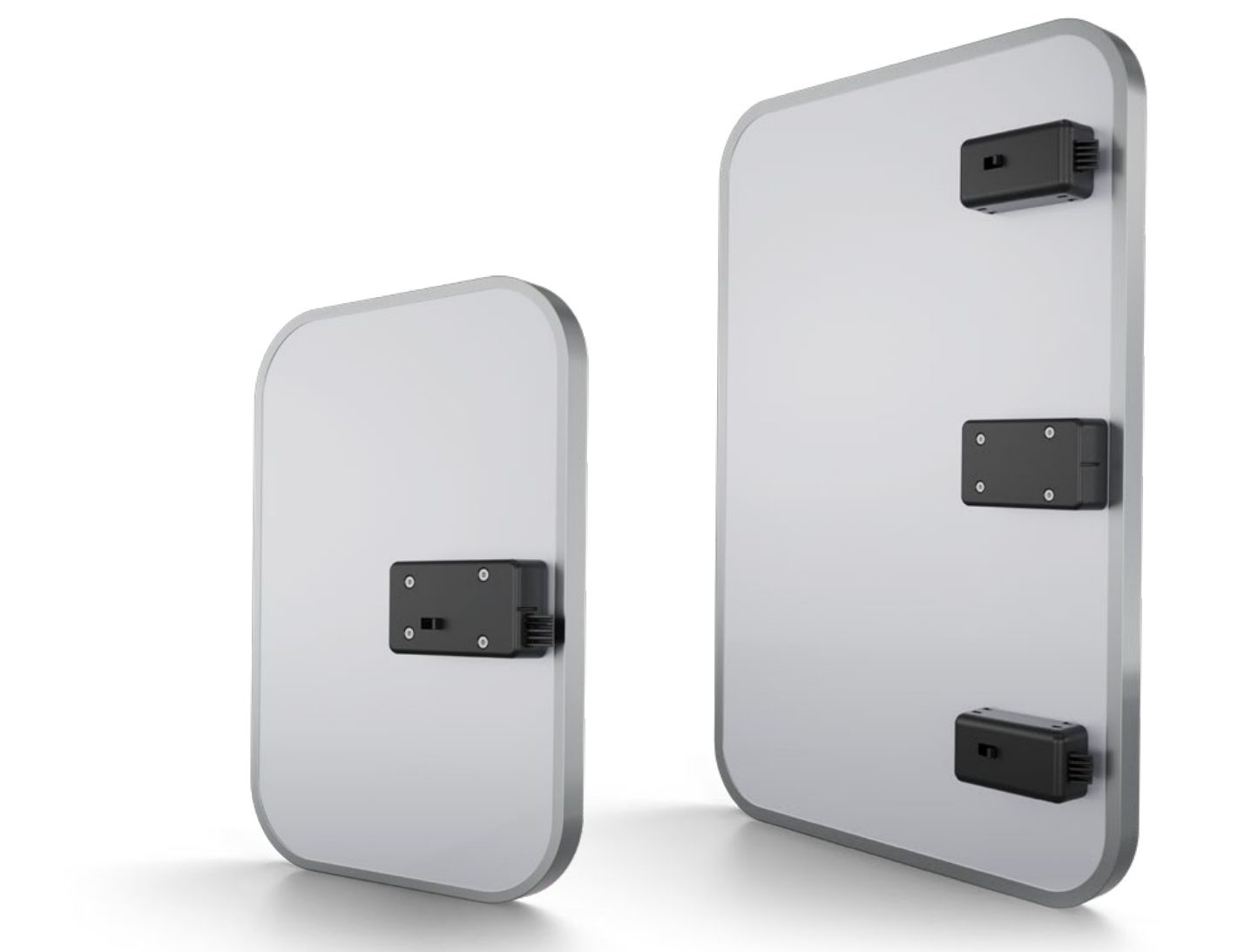

Its cut-to-length design adapts to different installation situations and ensures reliable, uniform force transmission with reduced assembly effort.
| Type | Flush latch lock, one-hand 2-point system |
|---|---|
| Platform | CubeLine Neo |
| Locking points | 2, synchronised by one central exterior lock |
| Linkage | Internal wire rope, variable cut-to-length, variable height adjustment |
| Compression | Without |
| Locking | Push to lock – no key required |
| Central locking | Optional |
| Locking wedge guide | Optional |
| Internal emergency release | Optional |
| Further technical data | Available on request |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
CubeLine Neo 2-Point System is prepared for plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
