Locks automatically. Seamlessly integrated.

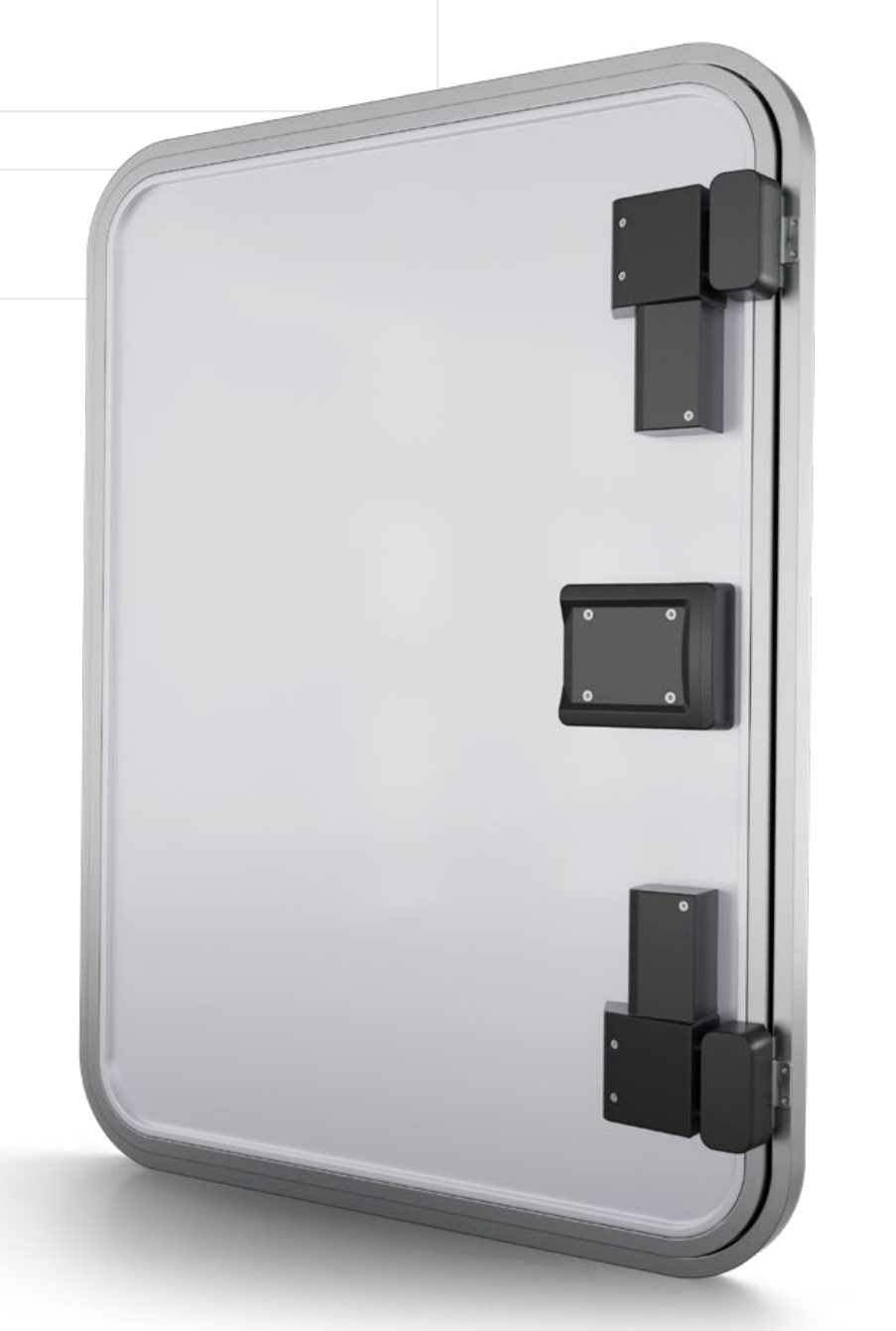

Kubus XLe is an electromechanical exterior locking system for rear garages. Two M1 rotary latch locks secure large garage doors in sync – automatically, whenever the vehicle is locked or unlocked. No key. No cylinder. No compromises.
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
The benefits at a glance:

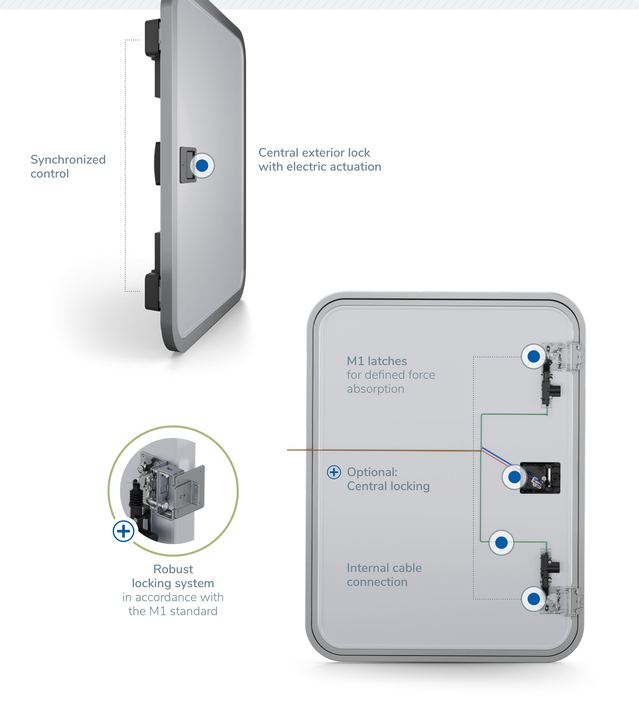

Kubus XLe connects directly to the central locking system of the motorhome. When the driver locks the vehicle, the garage locks too – both locking points at once.

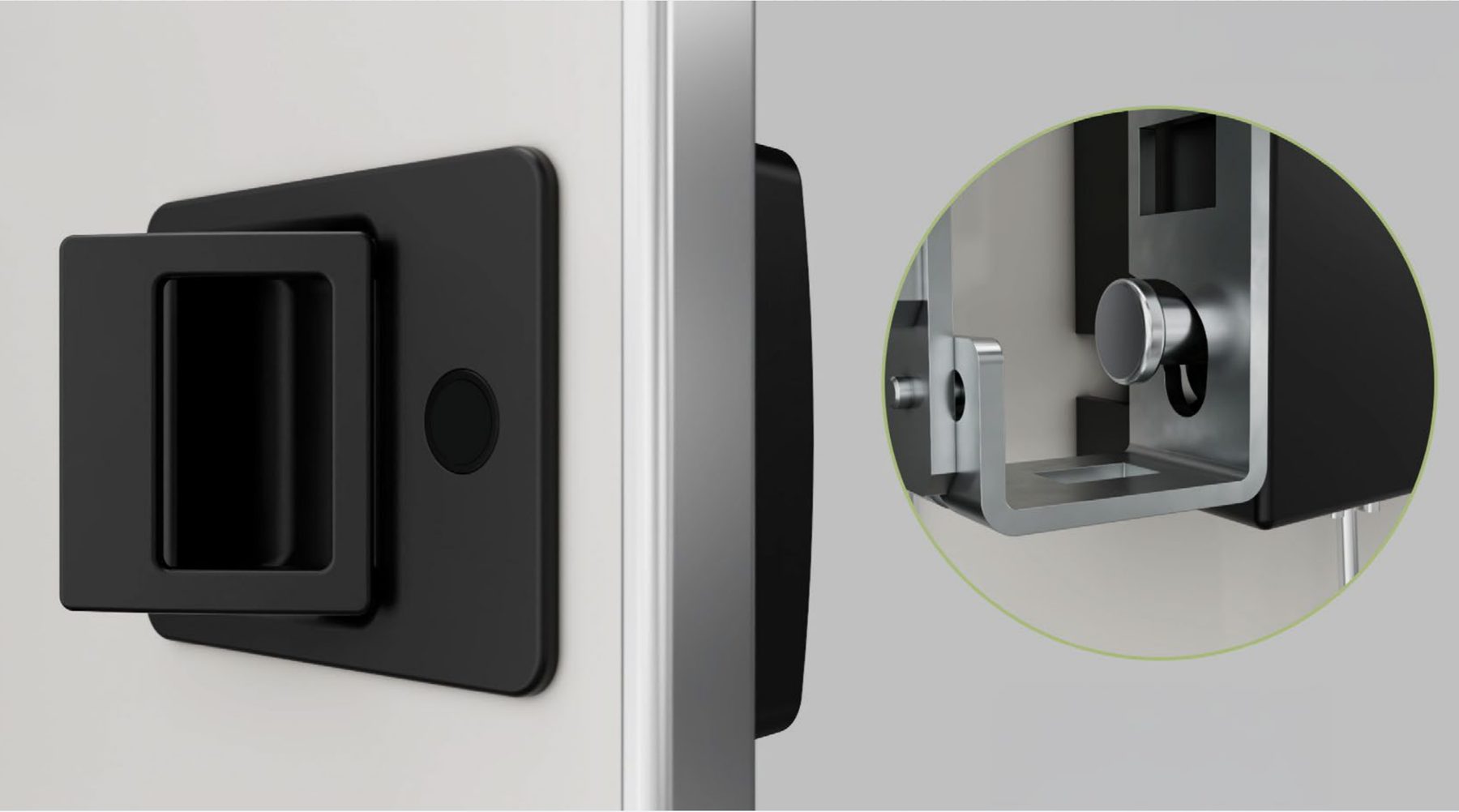

The robust latches made of die-cut metal components ensure an extremely high security standard and long-lasting performance – even under heavy loads. Deliberately omitting cylinders and mechanical keys reduces component variety and complexity and eliminates classic points of attack.
Thanks to the low installation height on the inside of the hatch, the storage space remains fully usable. Kubus XLe integrates discreetly into various installation concepts and can be positioned flexibly thanks to its cable connection.
| Type | Electromechanical one-hand two-point locking system |
|---|---|
| Application | Rear garages and large storage hatches of motorhomes |
| Locking points | 2 M1 rotary latch locks, synchronized |
| Standard | M1 |
| Actuation | Electric, via the vehicle central locking |
| Connection | Internal cable connection |
| Latch material | Die-cut metal components |
| Key / cylinder | Not required |
| Design | Various handle shapes and colors |
| Wall thickness | Various – please ask for your installation |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
