Keys & Cylinders

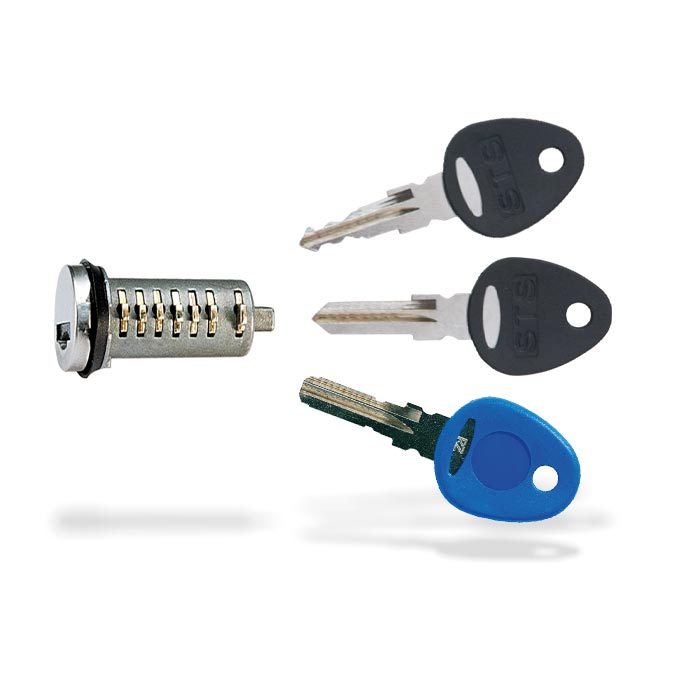

Series 43 Cylinder

Name: Series 43 Cylinder
Brand: STS

Key strength 2.5 mm

Series 43 cylinders with 2.5 mm keys give a vehicle one key for all locks – with identical installation dimensions across all variants.

STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.

Product advantages

Features & benefits

One key for every lock on the vehicle: entry doors, storage and gas bottle compartments, garage doors and filler caps
Installation dimensions identical across all variants
Individual key head or company logo possible on request
Customer-specific key code ranges can be reserved
No master keys – for security reasons

Specifications

Key strength	2.5 mm (0.10 in)
Key type	Standard
Set contents	Cylinder · Keys, 2.5 mm (0.10 in) · Key blank · Removal key (blue)
Removal key color	Blue
Installation dimensions	Identical for all variants
Customization	Individual key head or company logo on request
Key code ranges	Customer-specific ranges can be reserved
Master keys	Not offered

Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.

Send us your requirements – vehicle type, wall thickness, color and annual volume – and we will prepare a quotation or samples for you.
