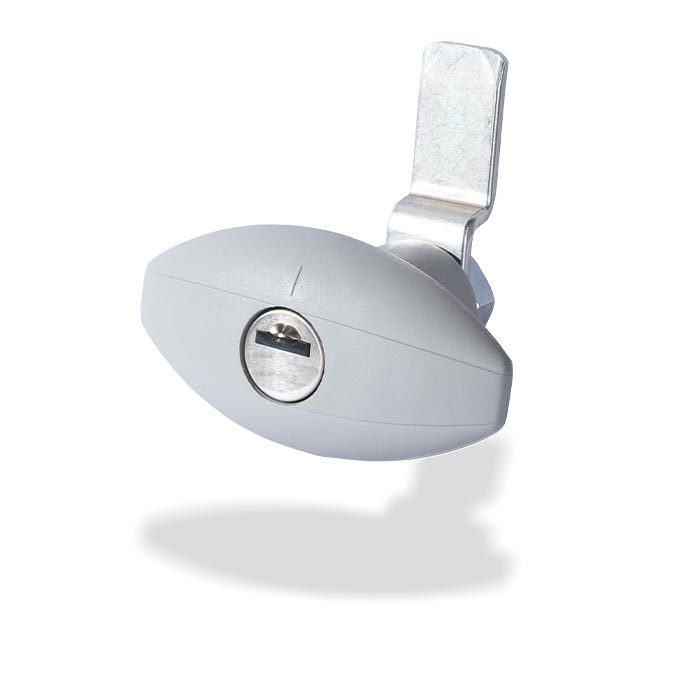

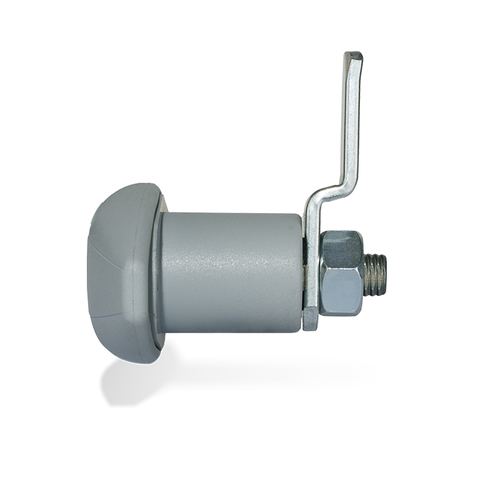

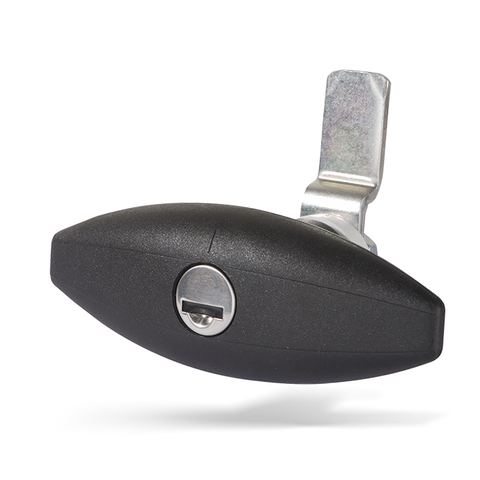

Ellipse Push Lock
Item series 2003, 2004
A proven system of zinc die-cast and injection-molded plastic, available with a large or small rotary handle and a wide choice of cams.
- Wall thickness
- up to 37 mm (1.46 in)
- Handle
- Large or small
- Material
- Zinc die-cast + plastic
- Cylinders
- STS, Zadi
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- Proven system of zinc die-cast and injection-molded plastic
- Available with large or small rotary handle
- Prepared for STS and Zadi plug-in cylinders
- Fits wall thicknesses up to 37 mm
- Mounting plate available
- Various colors possible
- Cams in various designs
Technical data
| Type | Rotary push lock |
|---|---|
| Material | Zinc die-cast and plastic |
| Wall thickness | up to 37 mm (1.46 in) |
| Cylinders | STS, Zadi |
| Handle | Large or small rotary handle |
| Colors | Various |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
Item numbers
| Description | Item no. |
|---|---|
| Mounting plate | 1000-42-81 |
One key for the whole vehicle
Ellipse Push Lock is prepared for STS, Zadi plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
