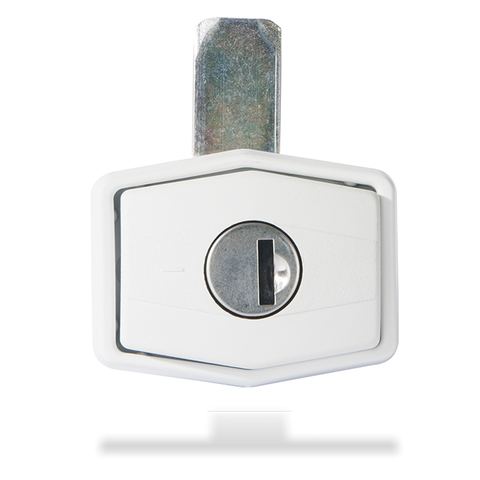

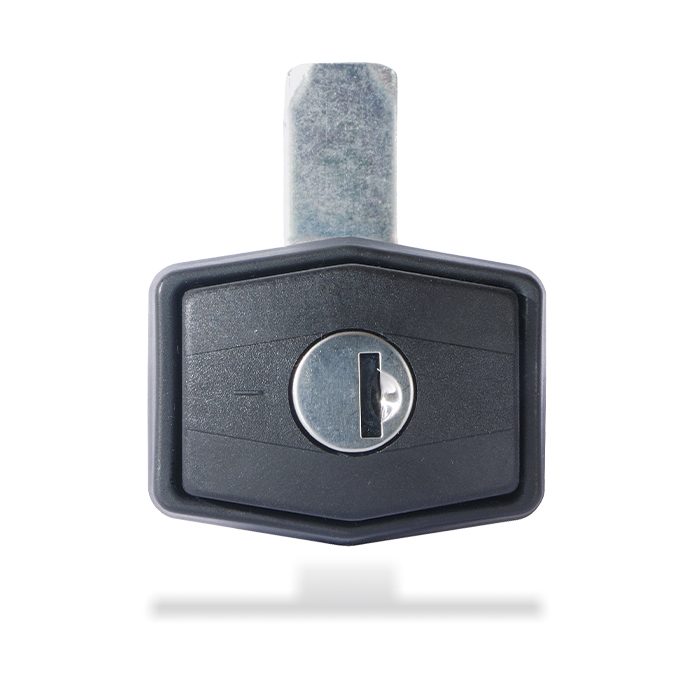

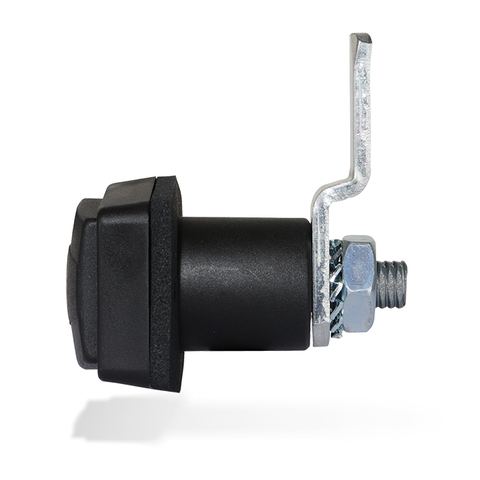

Hexagon Push Lock
Item series 2002
A push lock with a distinctive hexagonal rotary handle, prepared for STS and Zadi plug-in cylinders.
- Wall thickness
- up to 37 mm (1.46 in)
- Handle
- Hexagonal
- Mounting plate
- 1000-39-81
- Cylinders
- STS, Zadi
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- Hexagonal rotary handle
- Prepared for STS and Zadi plug-in cylinders
- Fits wall thicknesses up to 37 mm
- Various colors possible
- Mounting plate available
- Cams in various designs
Technical data
| Type | Rotary push lock |
|---|---|
| Handle | Hexagonal |
| Wall thickness | up to 37 mm (1.46 in) |
| Cylinders | STS, Zadi |
| Colors | Various |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
Item numbers
| Description | Item no. |
|---|---|

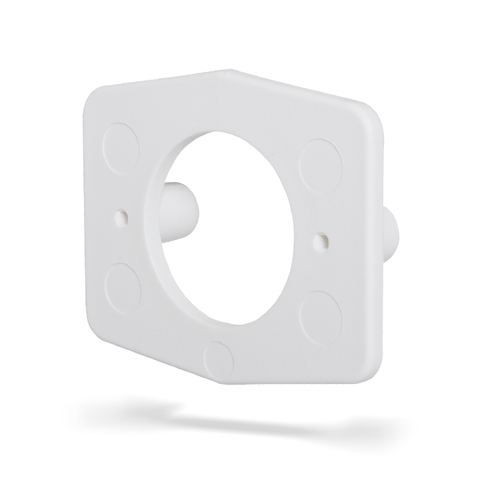

| Mounting plate | 1000-39-81 |
One key for the whole vehicle
Hexagon Push Lock is prepared for STS, Zadi plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
