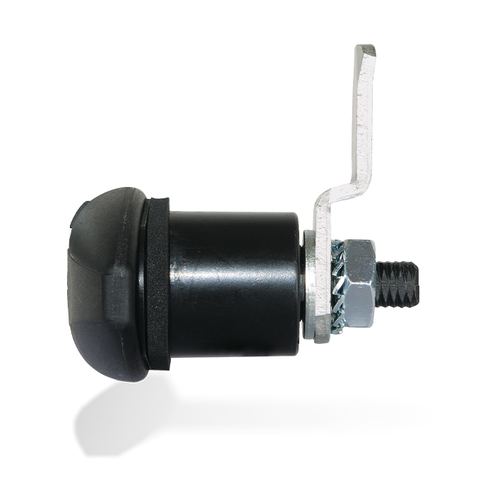

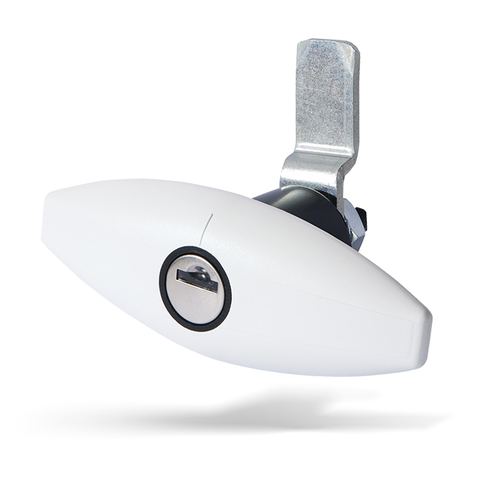

Ellipse Light Push Lock
Item series 2003, 2004
The proven Ellipse system in a plastic design that saves weight – with cylinder inserts in plastic or zinc die-cast.
- Wall thickness
- up to 40 mm (1.57 in)
- Handle
- Large or small
- Material
- Plastic (weight-saving)
- Cylinders
- STS, Zadi, HSC
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- Proven system in plastic design with weight savings
- Cylinder inserts in plastic or zinc die-cast for STS, Zadi and HSC plug-in cylinders
- Fits wall thicknesses up to 40 mm
- Available with large or small rotary handle
- Mounting plate available
- Various colors possible
- Cams in various designs
Technical data
| Type | Rotary push lock |
|---|---|
| Material | Plastic |
| Wall thickness | up to 40 mm (1.57 in) |
| Cylinder insert | Plastic or zinc die-cast, for STS, Zadi and HSC |
| Handle | Large or small rotary handle |
| Colors | Various |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
Item numbers
| Description | Item no. |
|---|---|
| Mounting plate | 2000-42-81 |
One key for the whole vehicle
Ellipse Light Push Lock is prepared for STS, Zadi, HSC plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
