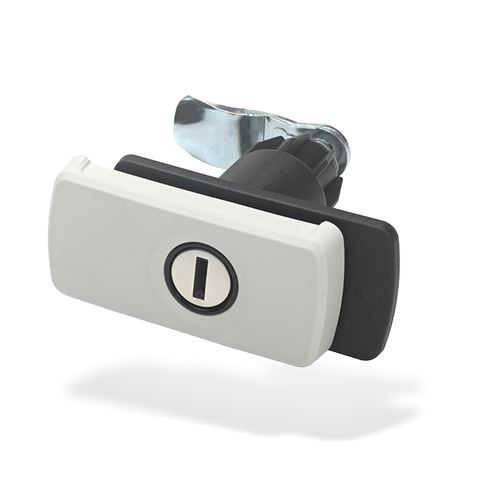

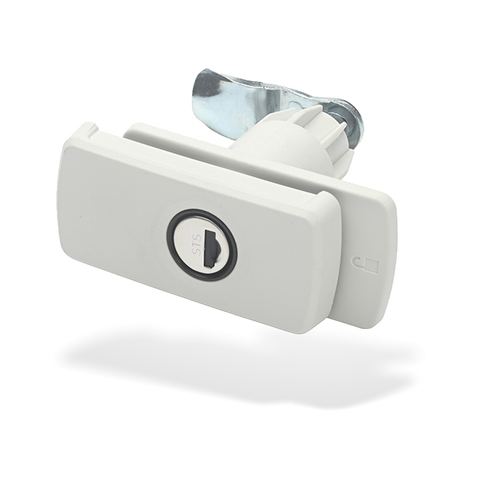

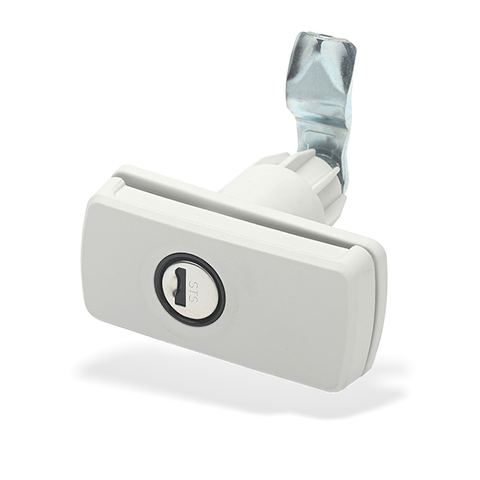

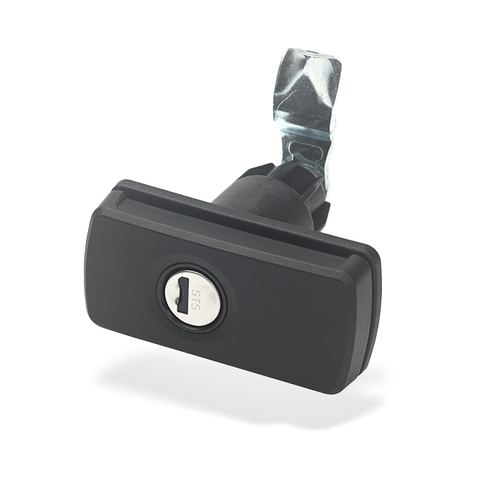

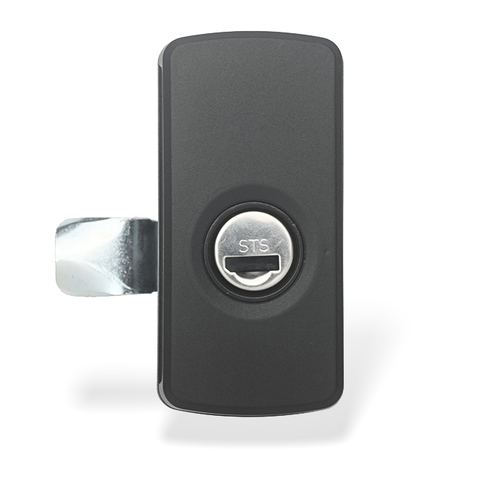

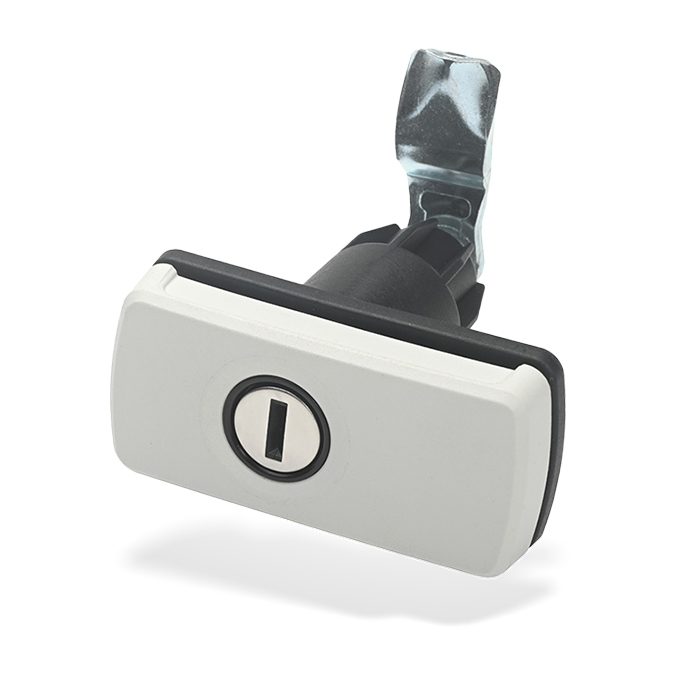

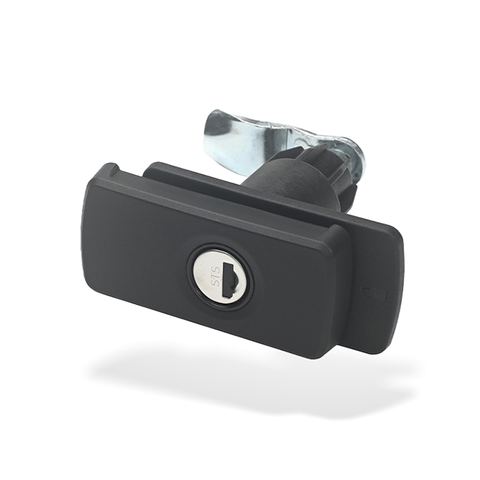

Slim Line Compression Lock
Item series 2018
A slimmer take on the Ellipse principle – with the same hole pattern, so it can replace an Ellipse lock without any changes to the door.
- Wall thickness
- 26–45 mm (1.02–1.77 in)
- Compression
- 6 mm (0.24 in)
- Hole pattern
- Identical to Ellipse
- Cylinders
- STS, Zadi, HSC
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- Compression lock for compartment and garage doors
- Waterproof and corrosion-protected
- Turning the handle by 180° pulls the hatch onto the seal with 6 mm of compression
- Particularly smooth operation
- Cylinder inserts in zinc die-cast or plastic for STS, Zadi and HSC plug-in cylinders
- Fits wall thicknesses from 26 to 45 mm
- Various colors possible
- Mounting plate available
- Cams in various designs
- Same hole pattern as Ellipse – drop-in replacement
- Design changes on request
Technical data
| Type | Rotary compression lock |
|---|---|
| Operation | 180° turn of the handle |
| Compression | 6 mm (0.24 in) |
| Wall thickness | 26–45 mm (1.02–1.77 in) |
| Cylinder insert | Zinc die-cast or plastic, for STS, Zadi and HSC |
| Hole pattern | Identical to Ellipse 2007 |
| Protection | Waterproof, corrosion-protected |
| Colors | Various |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
Item numbers
| Description | Item no. |
|---|---|

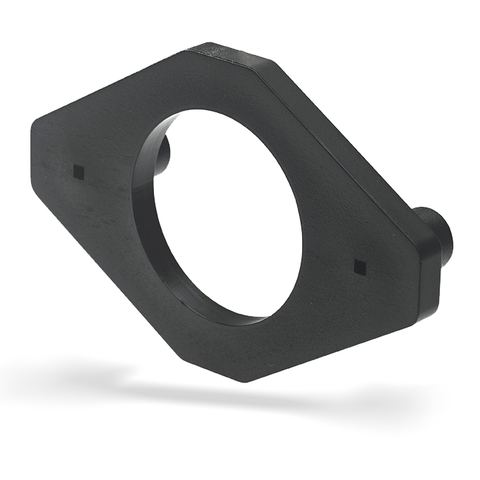

| Mounting plate | 2000-52-81 |
One key for the whole vehicle
Slim Line Compression Lock is prepared for STS, Zadi, HSC plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
