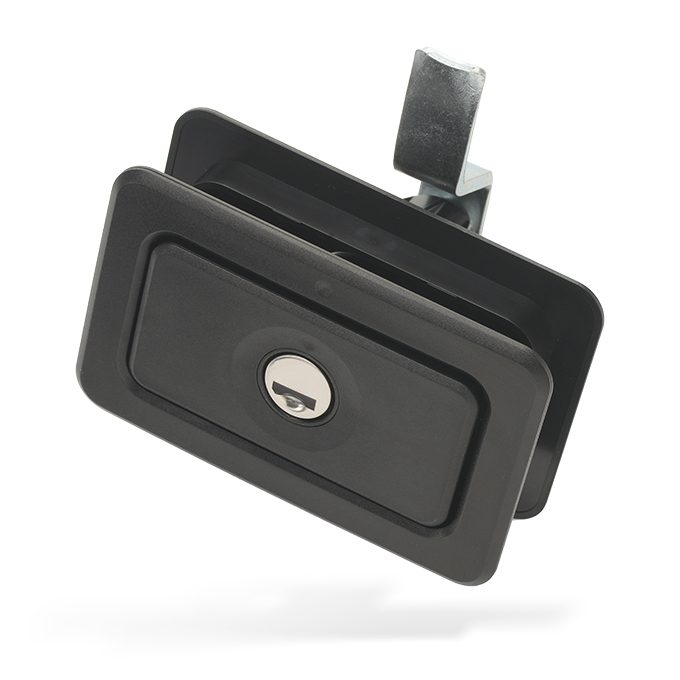

Quadro Flush Compression Lock
Item series 2015
A flush compression lock with the handle recessed into its shell – no protruding edges when closed, and the same proven 6 mm compression.
- Wall thickness
- 26–45 mm (1.02–1.77 in)
- Compression
- 6 mm (0.24 in)
- Mounting
- Flush
- Cylinders
- STS, Zadi, HSC
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- Compression lock, flush mounted
- Waterproof and corrosion-protected
- Turning the handle by 180° pulls the hatch onto the seal with 6 mm of compression
- Particularly smooth operation
- Zinc die-cast cylinder inserts for STS, Zadi and HSC plug-in cylinders
- No protruding edges when closed – the handle sits recessed in the handle shell
- Fits wall thicknesses from 26 to 45 mm
- Various colors possible
- Cams in various designs
- Design changes on request
Technical data
| Type | Rotary compression lock, flush mounted |
|---|---|
| Operation | 180° turn of the handle |
| Compression | 6 mm (0.24 in) |
| Wall thickness | 26–45 mm (1.02–1.77 in) |
| Cylinder insert | Zinc die-cast, for STS, Zadi and HSC |
| Protection | Waterproof, corrosion-protected |
| Colors | Various |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
One key for the whole vehicle
Quadro Flush Compression Lock is prepared for STS, Zadi, HSC plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
