Ellipse Compression Lock
Item series 2007

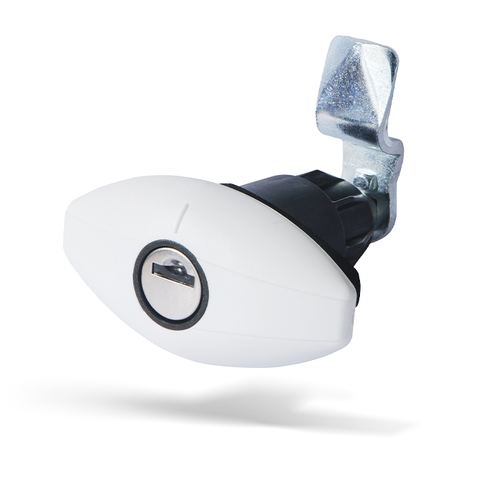

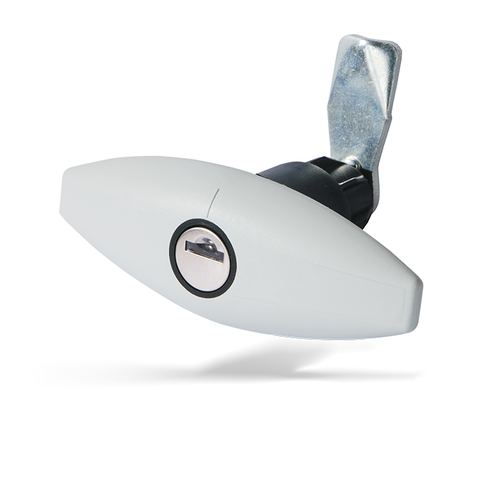

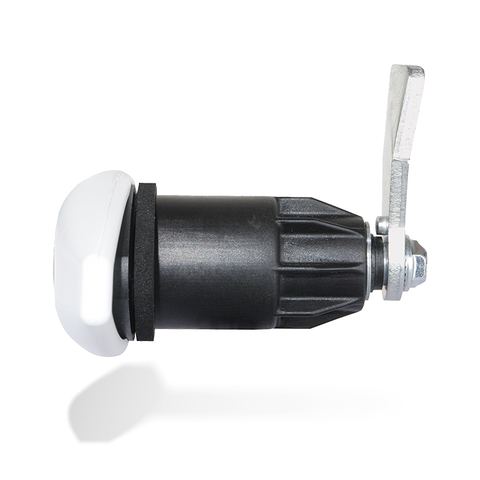

The classic STS compression lock for compartment and garage doors: a 180° turn of the handle pulls the hatch onto its seal with 6 mm of compression – waterproof, corrosion-protected and particularly smooth.
- Wall thickness
- up to 50 mm (1.97 in)
- Compression
- 6 mm (0.24 in)
- Operation
- 180° turn
- Cylinders
- STS, Zadi, HSC
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- Compression lock for compartment and garage doors
- Waterproof and corrosion-protected
- Turning the handle by 180° pulls the hatch onto the seal with 6 mm of compression
- Particularly smooth operation
- Cylinder inserts in zinc die-cast or plastic for STS, Zadi and HSC plug-in cylinders
- Fits wall thicknesses up to 50 mm
- Available with small or large rotary handle
- Various colors available
- Mounting plate available
- Cams in various designs
- Design changes on request
Technical data
| Type | Rotary compression lock |
|---|---|
| Operation | 180° turn of the handle |
| Compression | 6 mm (0.24 in) |
| Wall thickness | up to 50 mm (1.97 in) |
| Cylinder insert | Zinc die-cast or plastic, for STS, Zadi and HSC |
| Handle | Small or large rotary handle |
| Protection | Waterproof, corrosion-protected |
| Colors | Various |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
Item numbers
| Description | Item no. |
|---|---|

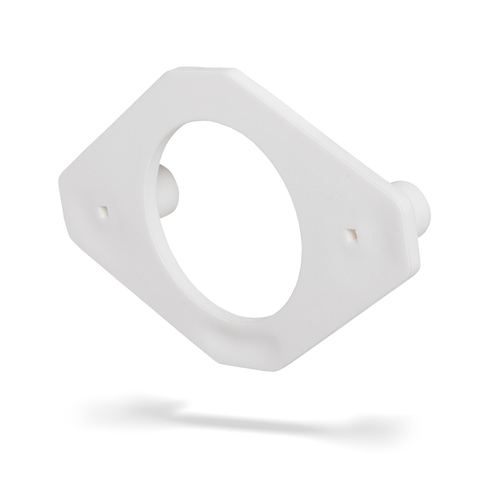

| Mounting plate | 2000-52-81 |
One key for the whole vehicle
Ellipse Compression Lock is prepared for STS, Zadi, HSC plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
Z 63 Inner-Track Cylinder
Inner-track key, 3 mm
- 3 mm
- Inner-track
Key strength 3 mm · removal key red
View product
SCS 53 Inner-Track Cylinder
Inner-track key, 3 mm
- 3 mm
- Inner-track
Key strength 3 mm · removal key red
View product
Series 43 Cylinder
Key strength 2.5 mm
- 2.5 mm
- Standard
Key strength 2.5 mm · removal key blue
View product
Europe 93 Cylinder
Key strength 2 mm
- 2 mm
- Standard
Key strength 2 mm · removal key red
View productRelated products
