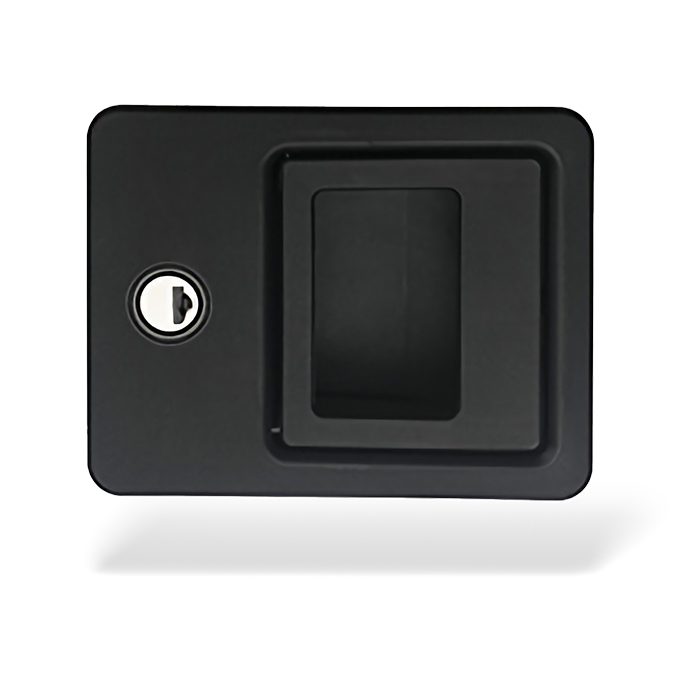

Kubus XL Latch Lock
One-point or one-hand two-point system
Kubus XL works as a one-point lock or as a one-hand two-point system. A free-swing handle in the locked position, many handle shapes and colors, and optional central locking make it one of the most versatile hatch locks in our range.
- Wall thickness
- 29.5–48.5 mm (1.16–1.91 in)
- Locking
- 1-point or 2-point
- Central locking
- Optional
- Cylinders
- STS, Zadi, HSC
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- One-hand operation – as one-point or two-point locking system
- Two-point version: double security through two locking points

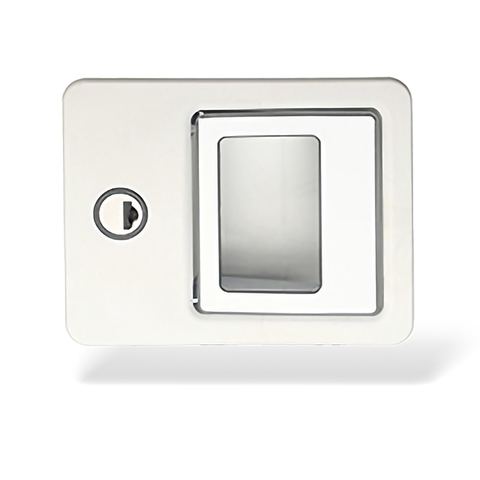

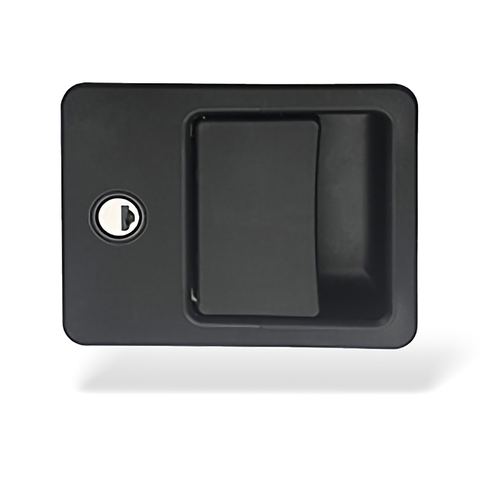

- Different outer lock designs thanks to different handle shapes and colors
- Free-swing function of the outer handle in the locked position

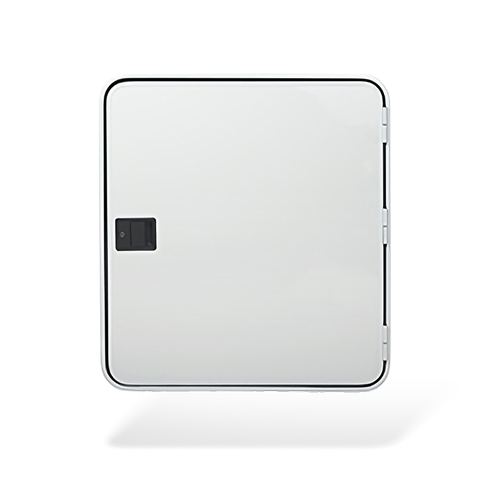

- Diverse mounting options and installation situations
- Rod connection for inserted or surface-mounted rods (two-point version)
- Rods can be readjusted in service thanks to adjustable interior locks
- Optional central locking
- Optional fluorescent emergency release handle
- Cylinder inserts for STS, Zadi and HSC plug-in cylinders
- Fits wall thicknesses from 29.5 to 48.5 mm
Technical data
| Type | Recessed latch lock |
|---|---|
| Configurations | One-point · one-hand two-point with rods |
| Wall thickness | 29.5–48.5 mm (1.16–1.91 in) |
| Rod connection | Inserted or surface-mounted rods |
| Handle | Free-swing when locked; various shapes and colors |
| Emergency release | Optional fluorescent handle |
| Central locking | Optional |
| Cylinder insert | For STS, Zadi and HSC |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
One key for the whole vehicle
Kubus XL Latch Lock is prepared for STS, Zadi, HSC plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
