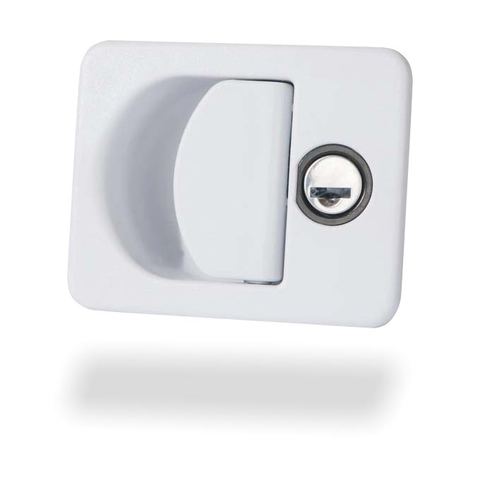

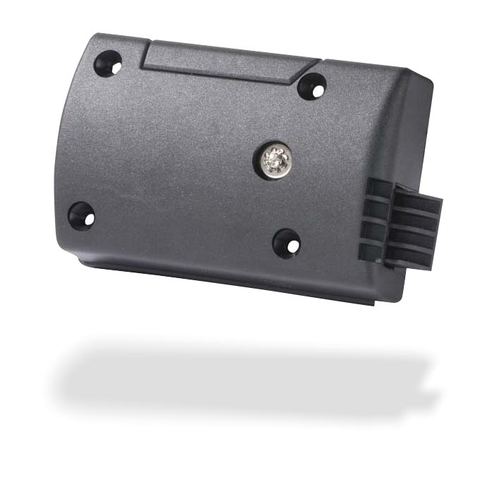

Kubus Recessed Latch Lock
Item series 2009
A recessed latch lock for compartment and garage doors with an ergonomically designed handle – smooth to operate and optionally ready for central locking.
- Wall thickness
- 24–50 mm (0.94–1.97 in)
- Locking
- One-point
- Central locking
- Optional
- Cylinders
- STS, Zadi, HSC
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- Latch lock for compartment and garage doors
- Ergonomically designed handle with smooth operation
- Cylinder insert for STS, Zadi and HSC plug-in cylinders
- Fits wall thicknesses from 24 to 50 mm
- Various colors possible
- 2 mm spacer available (part no. 1000-20090-840)
- Optional central locking – also as a retrofit kit
Technical data
| Type | Recessed latch lock, one-point |
|---|---|
| Wall thickness | 24–50 mm (0.94–1.97 in) |
| Cylinder insert | For STS, Zadi and HSC |
| Central locking | Optional / retrofittable |
| Colors | Various |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
Item numbers
| Description | Item no. |
|---|---|
| Spacer, 2 mm | 1000-20090-840 |
| Central locking retrofit kit | see product page |
One key for the whole vehicle
Kubus Recessed Latch Lock is prepared for STS, Zadi, HSC plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
