ArcH Motorhome Entry Door Lock
One-point locking system for motorhomes
ArcH combines a black outer handle with an inner locking module in several designs and colors. It complies with the M1 standard and is delivered with strike plate and cover.
- Wall thickness
- 27–45 mm (1.06–1.77 in)
- Standard
- M1
- Dimensions
- 374 × 119 × 86 mm (14.7 × 4.69 × 3.39 in)
- Cylinders
- STS, Zadi, HSC
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- One-point locking system for motorhome entry doors
- Outer handle and inner locking module
- Right- and left-hand versions

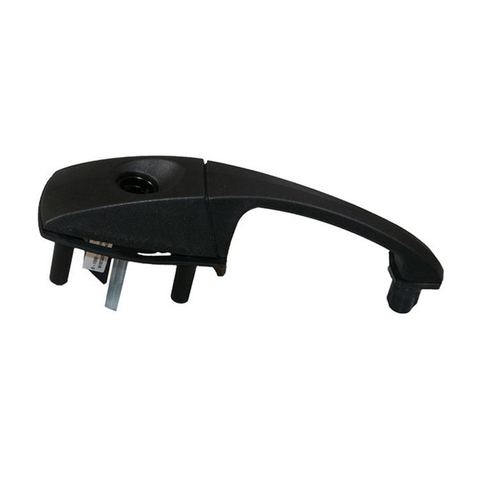

- Outer handle in black (RAL 9017)

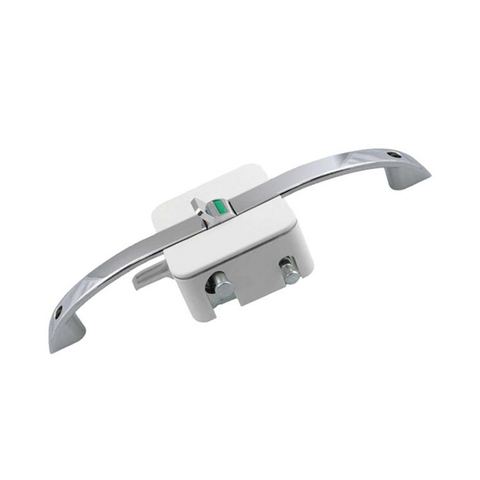

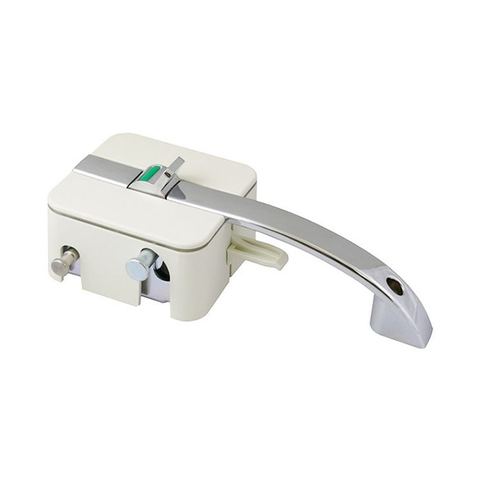

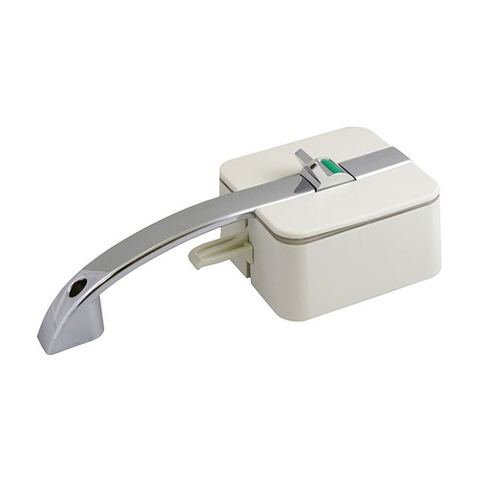

- Inner module with chrome-plated single or double handle

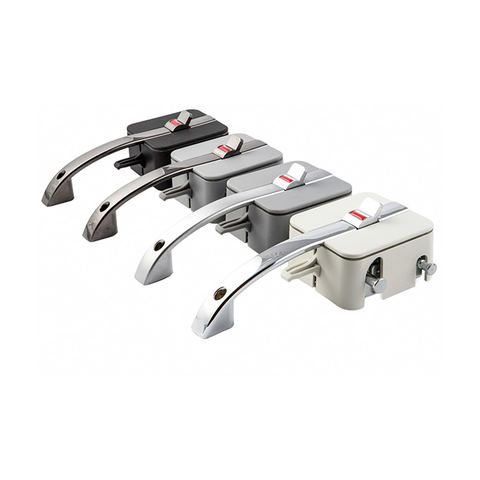

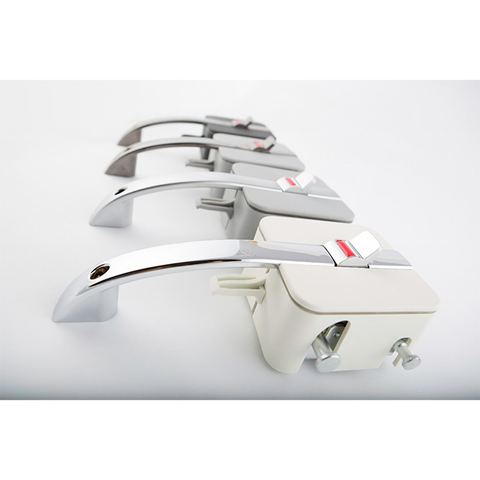

- Standard colors: white RAL 9001, black RAL 9017, gray RAL 7042
- Special colors from 500 pieces
- Inner lock with fluorescent frame available
- Inner lock with locking function (open/close)
- Fits wall thicknesses from 27 to 45 mm
- For STS, Zadi or HSC cylinders
- Delivered with strike plate and cover; cylinders and keys not included
- Complies with the M1 standard
Technical data
| Type | Entry door lock, one-point |
|---|---|
| Versions | Right-hand, left-hand |
| Outer handle | Black, RAL 9017 |
| Inner module | Chrome single or double handle; fluorescent frame optional; open/close locking function |
| Standard colors | White RAL 9001 · black RAL 9017 · gray RAL 7042 |
| Special colors | From 500 pieces |
| Wall thickness | 27–45 mm (1.06–1.77 in) |
| Dimensions | 374 × 119 × 86 mm (14.7 × 4.69 × 3.39 in) |
| Cylinders | STS, Zadi, HSC (not included) |
| Scope of delivery | Lock, strike plate and cover |
| Standard | M1 |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
One key for the whole vehicle
ArcH Motorhome Entry Door Lock is prepared for STS, Zadi, HSC plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
