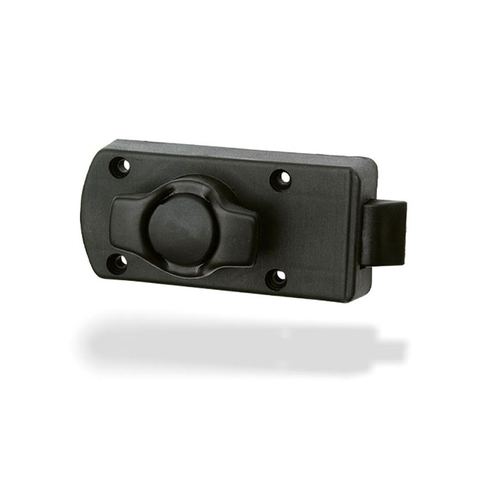

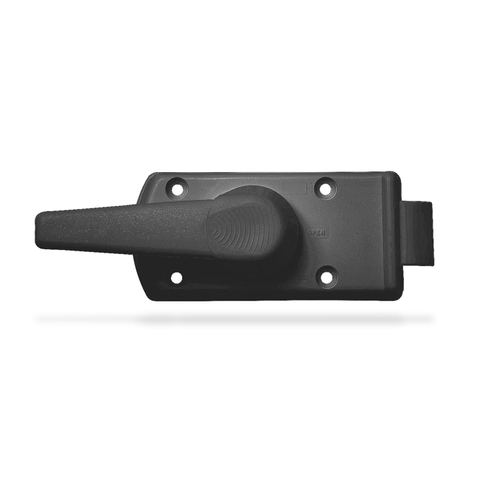

Europa 9301 Caravan Door Lock
Europa series 9301
A matched set of inner and outer lock in black for caravan and travel trailer doors – right- or left-hand, with knob or lever inside, and versatile enough for compartments and washrooms.
- Wall thickness
- 31–39 mm (1.22–1.54 in)
- Versions
- Right / left
- Interior
- Knob or lever
- Cylinders
- STS, Zadi
STS USA supplies RV manufacturers (OEMs) and dealers. Drawings, samples and quotations on request.
Features & benefits
- Consists of inner and outer lock in black
- Available in right- and left-hand versions
- Interior lock with knob or lever
- Cylinder inserts for STS and Zadi plug-in cylinders
- Fits wall thicknesses from 31 to 39 mm
- Versatile: as entry door lock, compartment lock or washroom (WC) lock
- Spacers in 2, 4 and 10 mm available
Technical data
| Type | Latch lock for caravan entry doors |
|---|---|
| Scope | Inner and outer lock |
| Color | Black |
| Versions | Right-hand, left-hand |
| Interior operation | Knob or lever |
| Wall thickness | 31–39 mm (1.22–1.54 in) |
| Cylinders | STS, Zadi |
| Spacers | 2 mm (0.08 in), 4 mm (0.16 in), 10 mm (0.39 in) |
Metric values are binding; inch values are rounded for reference. Specifications may change as a result of product development.
One key for the whole vehicle
Europa 9301 Caravan Door Lock is prepared for STS, Zadi plug-in cylinders. Combine it with an STS cylinder system and key every lock on the vehicle alike.
